Industrial Washing Powder Mixing Machine , Powder Conveying Equipment

Industrial Washing Powder Mixing Machine , Powder Conveying Equipment

  • Industrial Washing Powder Mixing Machine , Powder Conveying Equipment
Industrial Washing Powder Mixing Machine , Powder Conveying Equipment
Product Details:
Place of Origin: Zhejiang, China
Brand Name: Meibao
Certification: ISO9001
Model Number: Washing Powder Mixing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard packing or as customer requirements
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 3 sets / month
Contact Now
Detailed Product Description
Product Name: Washing Powder Mixing Machine Function: Spray Tower, Hot Air Furnace, Cyclone Deduster, Vibrating Screen, Etc
Usage: Drying And Shaping The Washing Powder Application: Daily Chemical
Material: SS, CS Installation: Engineer Guide
High Light:

powder conveying equipment

,

detergent manufacturing machines

Industrial Washing Powder Mixing Machine , Powder Conveying Equipment​



Washing Powder Mixing Machine Description



Slurry spary downward from the top of the spray tower through the nozzles; the hot air counterflow upward from bottom, forms base powder after drying. The tail gas exhausts from top of tower after purified by primary deduster and secondary hydro-deduster, meet emission standards. Fine powder from primary deduster returns to tower, for powder aqueous solution from secondary hydro-deduster, the water can be recycled after standing, part of the water will be used as process water for slurry preparation. Base powder at bottom of tower is sent to air lifter by belt conveyor, after air lifting and aging, form stable base powder at low temperature. Meanwhile by air lifting base powder meet the demand of top-down process . Cooled base powder storages in the base powder bin after vibrating screen. There is a beg filter on the top of separator, dusty air exhaust after cleaning, fine powder drop to separator by back blowing.



Technology Characteristics



1. Hot air furnace: Based on different fuel, the fuel can choose oil, gas, coal, biomass. In general, fuel cost of coal-fired furnace and biomass-fired furnace is lower. Hot air temperature can be adjustable, temperature is stable and operation is easy.

2. Spray drying tower: It is the core equipment of dehydration shaping detergent powder. Designed by fluid dynamic simulation technology, improves the drying efficiency

3. Dry-wet combined cyclone: Environmental protection, low system resistance, high dedusting efficiency, long cleaning cycle of equipment, strong durability.

4. Vibrating screen: High efficiency, easy cleaning



Washing Powder Mixing Machine attributes



Product name Industrial Washing Powder Mixing Machine , Powder Conveying Equipment
Function Spray tower, hot air furnace, cyclone deduster, vibrating screen, etc
Usage Drying and shaping the washing powder
Application Daily chemical
Material SS, CS
Installation Engineer Guide

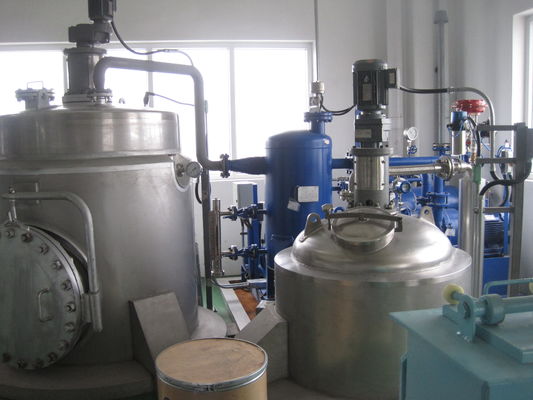

Industrial Washing Powder Mixing Machine , Powder Conveying Equipment 0

Industrial Washing Powder Mixing Machine , Powder Conveying Equipment 1

Industrial Washing Powder Mixing Machine , Powder Conveying Equipment 2
