Anti Corrosion Sodium Silicate Production Line Soda Ash And Quartz Sand Materials

Anti Corrosion Sodium Silicate Production Line Soda Ash And Quartz Sand Materials

    • Anti Corrosion Sodium Silicate Production Line Soda Ash And Quartz Sand Materials
  • Anti Corrosion Sodium Silicate Production Line Soda Ash And Quartz Sand Materials

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Meibao
    Certification: ISO9001
    Model Number: Sodium Silicate Production Line

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard packing or as customer requirements
    Delivery Time: 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 2 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Sodium Silicate Production Line Capacity: >10 Ton/day
    Heating Method: Furnace Installation: Engineer Guide
    Control: PLC Control Advantage: Anti Corrosion
    High Light:

    sodium silicate production equipment

    ,

    sodium silicate furnace

    Anti Corrosion Sodium Silicate Production Line Soda Ash And Quartz Sand Materials



    Sodium Silicate Production Line Description



    The main raw materials for the production of dry process (solid) sodium silicate are soda ash and quartz sand. The process is batching, firing and dissolving.The quartz sand and soda ash are weighed according to the formula ratio and are automatically put into the furnace reaction by the conveying device. After the material is put into the furnace, the chemical reaction occurs at a high temperature of 1350-1450 ° C. The molten sodium silicate is air-cooled or water-cooled to form a glassy solid particle saponin. The finished product is sent to the warehouse, or stacked or cooled to a normal temperature package for sale. The reverberatory furnace is designed with a regenerative preheater. The exhaust gas at 1200 °C can preheat the air and gas to 1100 °C and 900 °C respectively, and the exhaust gas temperature drops below 180 °C. In order to save energy and reduce consumption.



    Sodium Silicate Production Line  Process of production:

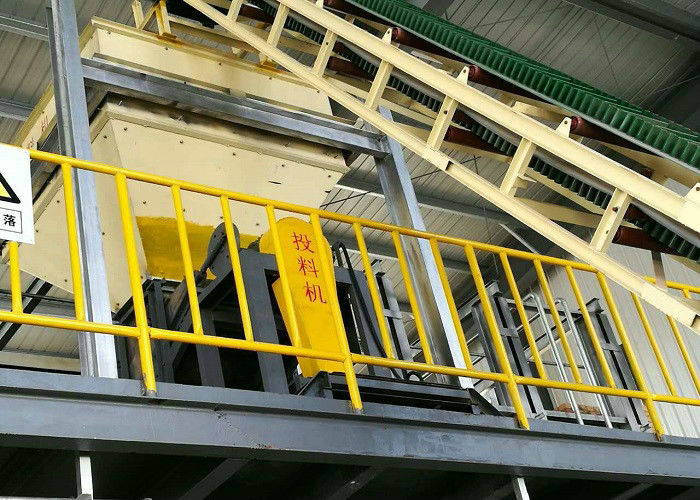

    Quartz sand and alkaline—weighing—automatic dosing system—mixer—hoister—high silo—charging machine—regenerative horse shoe flame kiln(gas)—chain-slat conveyor—cooling—product—storeroom



    Sodium Silicate Production Line attributes



    Product Name Anti Corrosion Sodium Silicate Production Line Soda Ash And Quartz Sand Materials
    Control PLC control
    Capacity >10 ton/day
    Heating method Furnace
    Modulus >2.5
    Machine type Automatic
    Installation

    Engineer guide
