Low Cost Concentrated Washing Powder Making Machine Reasonable Process Design

Low Cost Concentrated Detergent Powder Production Line

The production process can be semi-automatic or fully automatic.

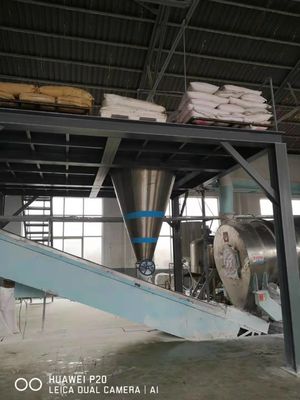

Powder raw materials, such as soda ash, sodium sulfate, zeolite, STPP and so on. The packing of material is small bags (25-50Kg). These materials are measured by platform scale, unpacked and poured into the feeding bin on the ground floor manually, and the raw materials are lifted to the mixer by the lift.

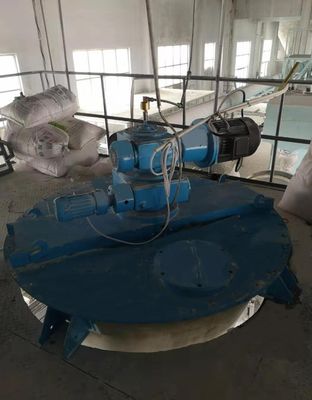

Liquid raw materials, such as essence, nonionic, LABSA and so on, the packing of material is barrel. These liquid materials are sent to the respective liquid tanks by the barrel pump, and then automatically measured by the respective metering pump and sent to the mixer for internal atomization. The atomized liquid droplets mix and react with the powder raw materials while stirring. After a period of time, the powder and liquid are evenly mixed.

Open the discharge valve under the mixer, and send the material to the screening machine for screening by the belt conveyor. The concentrated powder that meets the particle requirements is lifted from the lifting equipment to the finished product bin, and the finished product bin is connected to the packing machine. The semi-automatic packaging machine automatically weighs, the weighing specification can be set according to the needs. Manually put the bag, the packing machine feed the bag after induction. The electronic platform scale recheck the weight, then seal the bag by heat sealing machine. Check the sealing quality, then pack and stack. Finally, send the finished product to the finished product bin by small car.

Feature

Reasonable process, simple and reliable device and operation.
